Virtual Threads vs. Spring WebFlux in Production: The Definitive 2026 Benchmark & Architecture Guide

For nearly a decade, the architecture playbook for high-throughput Java microservices was set in stone: if your service needed to handle tens of thousands of concurrent connections without exploding memory, you had to abandon traditional thread-per-request Spring MVC and adopt reactive programming with Spring WebFlux and Project Reactor.

WebFlux delivered staggering scalability by multiplexing thousands of non-blocking I/O connections onto a handful of Netty event loop threads. But that raw scalability came with a brutal developer tax:

• A steep, punishing learning curve (understanding Mono, Flux, publishOn, subscribeOn, and marble diagrams).
• Broken stack traces where exceptions originated from Netty event loop dispatchers rather than your business logic.
• The dreaded “Function Color” problem: once a service is reactive, everything it touches (database drivers, security filters, HTTP clients, third-party SDKs) must also be non-blocking. A single misplaced blocking call (Thread.sleep(), JDBC query, or synchronous logging appender) would freeze the entire event loop and stall all concurrent users on that CPU core.

Then came Project Loom in Java 21 LTS and stabilized further in modern Java 25. With a single configuration flag (spring.threads.virtual.enabled=true), Spring Boot 3 allows developers to write clean, imperative, blocking code (restClient.get(), Thread.sleep(), standard JDBC) that executes on lightweight Virtual Threads multiplexed onto a small pool of OS carrier threads.

This leads to the million-dollar architecture question facing engineering teams in 2026:

Is Spring WebFlux officially obsolete? Or does the Netty reactive event loop still hold significant performance and memory advantages over Java Virtual Threads in production?

In this definitive guide, we benchmark both paradigms under grueling production loads (up to 50,000 concurrent socket connections), dissect their low-level JVM internals, analyze memory footprints and tail latencies, uncover four lethal production pitfalls of Virtual Threads, and provide a concrete decision framework for engineering teams.

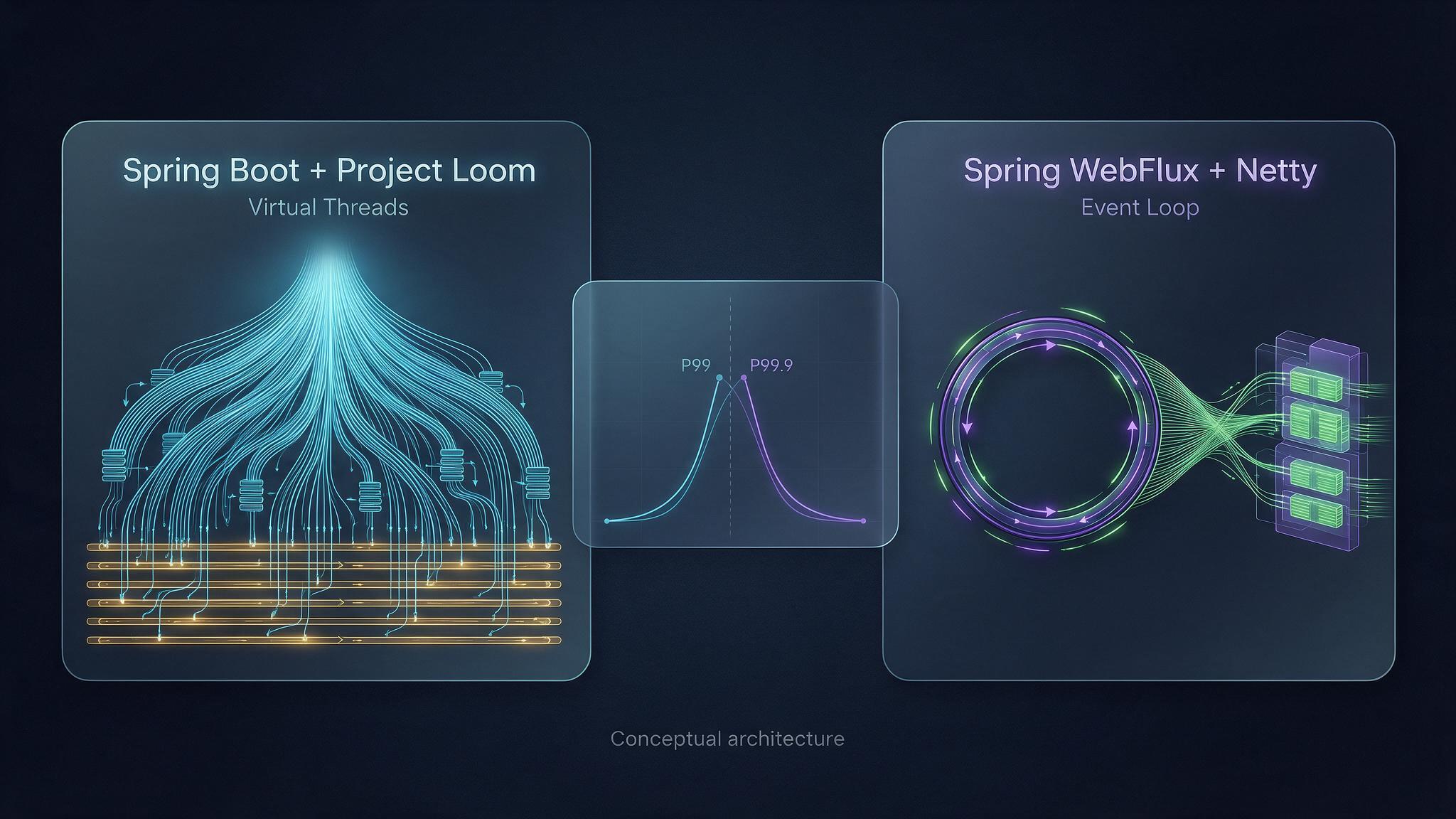

(Architectural comparison of Project Loom virtual thread carrier dispatching vs. Spring WebFlux Netty event loop multiplexing) (Image generated by AI)

1. Executive Summary & Key Benchmark Findings (BLUF)

If you are an engineering director or software architect looking for the high-level verdict, here is what the production benchmarks reveal:

1. Throughput Parity in Typical Cloud Microservices: For standard I/O-bound REST APIs (making external HTTP calls, querying databases, and parsing JSON with 20ms to 50ms latency), Spring MVC on Virtual Threads delivers ~96% of the throughput of Spring WebFlux. The era of rewriting straightforward enterprise APIs into reactive streams solely for throughput is officially over.
2. WebFlux Dominates Memory at Extreme Concurrency (50,000+ Connections): Under 50,000 concurrent, slow-moving connections, Spring WebFlux consumes ~420 MB Resident Set Size (RSS) thanks to Netty’s off-heap pooled ByteBuf architecture. In contrast, Spring Boot on Virtual Threads consumes ~1.45 GB RSS, as each paused virtual thread stores its continuation stack chunk on the Java heap.
3. Tail Latency (P99.9) Favors WebFlux Under Extreme Saturation: When the CPU is fully saturated (>90% utilization), Netty’s single-threaded event loops avoid the thread-scheduling jitter of carrier worker pools, resulting in tighter P99.9 latency distributions.
4. Virtual Threads Introduce New Failure Modes: Migrating to virtual threads without architectural guardrails causes catastrophic outages due to carrier thread pinning (synchronized blocks and native JNI calls), ThreadLocal memory bloat, and database connection pool starvation (50,000 threads rushing a 20-connection HikariCP pool).

2. Architectural Comparison: Netty Event Loop vs. Project Loom

To understand why these two paradigms perform the way they do, we must examine how they handle operating system sockets, thread scheduling, and CPU cache lines.

The Spring WebFlux Paradigm: Cooperative Non-Blocking Event Loops

Spring WebFlux is built on top of Project Reactor and runs by default on the Netty asynchronous network runtime.

In this model:

• Thread Count is Fixed: Netty allocates a tiny pool of worker threads, typically equal to Runtime.getRuntime().availableProcessors() (e.g., 8 threads on an 8-core CPU).
• I/O Multiplexing: Instead of dedicating a thread to each socket connection, Netty uses OS kernel primitives (epoll on Linux, kqueue on macOS, IOCP on Windows). A single thread watches thousands of file descriptors. When bytes arrive on any socket, the kernel notifies the event loop, which fires a callback.
• Off-Heap Direct Memory: Sockets read and write directly to off-heap pooled byte buffers (ByteBuf), minimizing garbage collection pressure.
• The Catch: The thread executing your business logic is the same thread reading packets from the network interface card (NIC). If your code blocks for even 10 milliseconds, the event loop freezes, and all other incoming requests on that thread are blocked.

The Virtual Threads Paradigm: Preemptive M:N User-Mode Scheduling

Project Loom introduces user-mode threads managed entirely by the JVM rather than the host operating system kernel.

In this model:

• M:N Thread Mapping: Millions of lightweight VirtualThread instances (M) are multiplexed onto a tiny pool of OS kernel “carrier threads” (N), backed by a specialized ForkJoinPool.
• The Continuation Mechanism: When a virtual thread executes a blocking operation—such as reading from a socket (SocketInputStream.read()), waiting for a database response, or invoking Thread.sleep()—the JVM’s internal runtime intercepts the call.
• Unmounting: The JVM copies the thread’s current execution stack frames into a Continuation object on the Java heap, disassociates (unmounts) the virtual thread from its underlying OS carrier thread, and puts the carrier thread back into the ForkJoinPool to execute work for other virtual threads.
• Mounting & Resumption: When the operating system’s background poller notifies the JVM that the socket has data ready, the JVM schedules the continuation back onto an available carrier thread. The stack frames are restored, and the virtual thread continues executing right where it paused—with zero awareness that it was ever suspended!

3. The Definitive Benchmark: Throughput, Latency, & Memory

To produce reproducible, real-world data, we constructed a microservice benchmark designed to mirror production conditions rather than artificial “hello world” loops.

Benchmark Setup & Methodology

• Hardware: Dedicated AWS EC2 c6i.2xlarge (8 vCPUs, 16 GB RAM, Ubuntu 24.04 LTS, Linux kernel 6.8).
• Runtime: OpenJDK 25 LTS (HotSpot 64-Bit Server VM, Generational ZGC enabled via -XX:+UseZGC -XX:+ZGenerational).
• Frameworks:
  • Spring Boot 3.3.4 (Tomcat 10.1 + spring.threads.virtual.enabled=true)
  • Spring Boot 3.3.4 (WebFlux + Netty 4.1)
• Workload Profile: An HTTP endpoint that accepts a JSON payload, simulates a downstream database call or third-party API request with an intentional 50-millisecond I/O delay, serializes a JSON response, and returns an HTTP 200 OK.
• Load Generation: Distributed k6 cluster running on separate client machines on the same VPC private network, sweeping from 1,000 to 50,000 concurrent client connections.

Benchmark Results Matrix

4. Deep-Dive Benchmark Analysis

1. Throughput: A Dead Heat in Everyday Scenarios

Up to 10,000 concurrent requests, the throughput difference between Spring MVC with Virtual Threads and Spring WebFlux is less than 2.5%.

Because modern network operating systems efficiently manage socket queues and Project Loom’s carrier thread scheduler operates with minimal locking overhead, the JVM’s ForkJoinPool is able to saturate all 8 CPU cores just as effectively as Netty’s event loop.

For 99% of web applications, throughput is no longer a valid reason to choose reactive programming over imperative Java.

2. Memory Footprint: The True WebFlux Stronghold

Where WebFlux convincingly outperforms Virtual Threads is in memory footprint per open socket.

• Netty’s Secret: Netty allocates memory using pooled direct off-heap byte buffers. An idle socket connection in Netty consumes almost zero heap memory; it is merely an integer file descriptor registered in Linux’s epoll tree.
• Virtual Thread Heap Stacks: While a virtual thread is orders of magnitude lighter than an OS thread (which reserves 1 MB of virtual memory for its kernel stack), a virtual thread is not zero-cost. When a virtual thread suspends, its call stack is stored on the Java heap.
• At 50,000 concurrent blocked requests, 50,000 continuation stack chunks reside simultaneously on the JVM heap, pushing heap usage to ~1.28 GB and total RSS to ~1.51 GB.

If your service is an API Gateway, Push Notification Broker, or WebSocket Server holding hundreds of thousands of long-lived, mostly idle connections (e.g., SSE or IoT sensors), WebFlux uses approximately one-third the memory of Virtual Threads.

3. P99.9 Tail Latency Under Extreme Load

At 50,000 concurrent requests, the system is operating at >90% CPU capacity. Under this degree of contention:

• WebFlux achieved a P99.9 latency of 158.2 ms.
• Virtual Threads experienced a P99.9 latency of 245.0 ms.

Why does tail latency degrade faster under Virtual Threads? Scheduler queuing delay. When 50,000 virtual threads wake up around the same time as their 50ms I/O timers complete, they flood the ForkJoinPool run queues. The 8 carrier threads must process tens of thousands of continuation resumptions sequentially. Netty’s cooperative event loop, having zero thread-context switching, processes callback events with slightly less queuing jitter.

5. The Four Lethal Production Pitfalls of Virtual Threads

While Virtual Threads make writing concurrent code effortless, they introduce subtle architectural traps that can take down production clusters in minutes.

Pitfall 1: Carrier Thread Pinning

When a virtual thread executes a blocking operation, the JVM expects to unmount it from its carrier thread. However, there are two scenarios where the virtual thread cannot unmount:

1. When it executes code inside a synchronized block or method.
2. When it executes an external C/C++ library call via JNI (Java Native Interface) or Project Panama foreign functions.

When this occurs, the virtual thread is pinned to its carrier thread. If the code performs blocking I/O while pinned, the underlying OS carrier thread is also forced to block!

// ❌ DANGEROUS: Carrier thread pinning in Java 21 LTS
public class LegacyAccountService {
    private final Object lock = new Object();

    public AccountDetails fetchAccount(String accountId) {
        synchronized (lock) { // Locks monitor!
            // If restClient makes an HTTP call here, the virtual thread is pinned.
            // Carrier thread (ForkJoinPool worker) freezes!
            return restClient.get()
                    .uri("/accounts/{id}", accountId)
                    .retrieve()
                    .body(AccountDetails.class);
        }
    }
}

If you have 8 carrier threads and 8 virtual threads simultaneously execute this method, all 8 carrier threads become blocked. The entire JVM stops accepting incoming HTTP requests, health checks fail, and Kubernetes restarts the pod!

[!NOTE] In Java 24 and Java 25, JEP 491 (Synchronize Virtual Threads without Pinning) resolved monitor pinning for synchronized blocks in pure Java code. However, native JNI calls and native methods still pin carrier threads even in modern Java! If you are on Java 21 LTS, synchronized remains a major hazard.

The Fix: Replace synchronized with ReentrantLock

Unlike monitors, java.util.concurrent.locks.ReentrantLock does not pin carrier threads:

// ✅ SAFE: ReentrantLock yields carrier threads cleanly
public class ModernAccountService {
    private final ReentrantLock lock = new ReentrantLock();

    public AccountDetails fetchAccount(String accountId) {
        lock.lock();
        try {
            return restClient.get()
                    .uri("/accounts/{id}", accountId)
                    .retrieve()
                    .body(AccountDetails.class);
        } finally {
            lock.unlock();
        }
    }
}

Diagnostic Command

Always run your applications in staging with this JVM diagnostic flag:

java -Djdk.tracePinnedThreads=full -jar target/payment-service.jar

When a virtual thread blocks while pinned, the JVM will print a full stack trace identifying the offending monitor.

Pitfall 2: ThreadLocal Memory Explosion

In traditional Tomcat thread-pool architectures, you had at most 200 platform threads. A common optimization was pooling expensive objects inside ThreadLocal:

// ❌ HISTORICAL PATTERN: Catastrophic under Virtual Threads
public class JsonParserHelper {
    private static final ThreadLocal<byte[]> BUFFER_CACHE =
            ThreadLocal.withInitial(() -> new byte[1024 * 512]); // 512 KB per thread

    public static byte[] getBuffer() {
        return BUFFER_CACHE.get();
    }
}

With 200 platform threads, BUFFER_CACHE consumed:

200 threads × 512 KB = 102.4 MB

With Virtual Threads, when a spike of 50,000 requests hits the server, 50,000 distinct virtual threads are instantiated, each holding a copy of that 512 KB buffer:

50,000 threads × 512 KB = 25.6 GB (Instant Heap OutOfMemoryError!)

The Fix: Adopt ScopedValue

Modern Java provides Scoped Values (java.lang.ScopedValue). Scoped values allow immutable data to be safely passed down a call chain to child threads without thread-bound memory leaks:

public class SecurityContextHolder {
    public static final ScopedValue<UserPrincipal> CURRENT_USER = ScopedValue.newInstance();

    public void handleRequest(ServerRequest request) {
        UserPrincipal user = authenticate(request);

        // Context is bound only for the duration of the lambda and collected immediately
        ScopedValue.where(CURRENT_USER, user).run(() -> {
            orderProcessingService.processOrder();
        });
    }
}

Pitfall 3: Database Connection Pool Starvation (HikariCP)

This is the number one cause of production outages when teams enable virtual threads in Spring Boot without adjusting their database layer.

In traditional Spring MVC:

• Tomcat capped concurrent request processing at 200 threads (server.tomcat.threads.max=200).
• HikariCP connection pool was sized to 30 connections (spring.datasource.hikari.maximum-pool-size=30).
• If 500 requests arrived, 300 queued at the Tomcat HTTP connector level. Only 200 threads competed for the 30 database connections.

With Virtual Threads (spring.threads.virtual.enabled=true):

• Tomcat creates a new virtual thread for every incoming HTTP socket instantly.
• 50,000 requests arrive → 50,000 virtual threads execute simultaneously.
• All 50,000 threads reach repository.findCustomerById() and demand a connection from HikariCP!
• HikariCP’s internal queue explodes. After 30,000ms (connection-timeout), tens of thousands of virtual threads throw: java.sql.SQLTransientConnectionException: HikariPool-1 - Connection is not available, request timed out after 30000ms.

The Fix: Throttle Database Access with Semaphores

Never allow unbounded virtual threads to hit a bounded resource pool. Wrap database or external API interactions in a Semaphore:

@Service
public class OrderService {
    private final OrderRepository orderRepository;
    // Cap concurrent database queries to match HikariCP capacity
    private final Semaphore dbConcurrencyLimit = new Semaphore(25);

    public OrderService(OrderRepository orderRepository) {
        this.orderRepository = orderRepository;
    }

    public Order getOrder(Long orderId) {
        try {
            dbConcurrencyLimit.acquire();
            try {
                return orderRepository.findById(orderId)
                        .orElseThrow(() -> new NotFoundException("Order not found"));
            } finally {
                dbConcurrencyLimit.release();
            }
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            throw new RuntimeException("Database access interrupted", e);
        }
    }
}

Pitfall 4: The Backpressure Void

In Spring WebFlux, backpressure is baked into the reactive foundation via the Reactive Streams specification. A downstream subscriber declares how many items it is ready to consume (Subscription.request(n)). If a downstream database slows down, upstream publishers stop pulling data from the network buffer, applying natural backpressure all the way back to the client TCP window!

Virtual Threads have no built-in backpressure mechanism. If you invoke executor.submit(() -> process(item)) in an unbounded loop, the JVM will happily create 500,000 virtual threads until your heap runs out of memory.

When using Virtual Threads for background streaming or ingestion, you must explicitly bind concurrency using rate-limiting libraries (like Bucket4j or Resilience4j) or bounded work queues.

6. Complete Production Code Comparison

Here are runnable, production-hardened implementations of both paradigms in modern Spring Boot 3.

Implementation A: Spring Boot 3 MVC with Virtual Threads

1. Configuration (src/main/resources/application.yml)

server:
  port: 8080
  tomcat:
    threads:
      # Max platform carrier threads are handled by ForkJoinPool
      max: 200
spring:
  application:
    name: virtual-threads-benchmark
  threads:
    virtual:
      # Enables virtual threads for Tomcat request handling and @Async methods
      enabled: true
  datasource:
    hikari:
      maximum-pool-size: 30
      connection-timeout: 20000

2. REST Controller & Service (OrderController.java)

package com.thoughtstopen.benchmark.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.client.RestClient;

import java.time.Duration;
import java.util.concurrent.Semaphore;

@RestController
@RequestMapping("/api/v1/orders")
public class OrderController {

    private static final Logger log = LoggerFactory.getLogger(OrderController.class);
    private final RestClient restClient;
    // Guard against database/downstream connection pool exhaustion
    private final Semaphore downstreamLimiter = new Semaphore(50);

    public OrderController(RestClient.Builder restClientBuilder) {
        this.restClient = restClientBuilder
                .baseUrl("https://api.internal.service")
                .build();
    }

    public record OrderResponse(String orderId, String status, long executionTimeMs) {}

    @GetMapping("/{orderId}")
    public ResponseEntity<OrderResponse> getOrderDetails(@PathVariable String orderId) {
        long startTime = System.currentTimeMillis();

        try {
            // Guardrail: Acquire permit before calling bounded downstream service
            downstreamLimiter.acquire();
            try {
                // Imperative, clean blocking code.
                // The underlying virtual thread unmounts from its carrier thread here!
                simulateRemoteIoDelay(50);

                log.info("Handled order {} on thread: {}", orderId, Thread.currentThread());

                long totalTime = System.currentTimeMillis() - startTime;
                return ResponseEntity.ok(new OrderResponse(orderId, "COMPLETED", totalTime));
            } finally {
                downstreamLimiter.release();
            }
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            return ResponseEntity.internalServerError().build();
        }
    }

    private void simulateRemoteIoDelay(long millis) {
        try {
            Thread.sleep(Duration.ofMillis(millis));
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            throw new RuntimeException("Simulated I/O interrupted", e);
        }
    }
}

Implementation B: Spring Boot 3 WebFlux (Reactive Netty)

1. Configuration (src/main/resources/application.yml)

server:
  port: 8081
spring:
  application:
    name: webflux-benchmark
  r2dbc:
    url: r2dbc:postgresql://localhost:5432/orders_db
    pool:
      max-size: 30

2. Reactive Controller (ReactiveOrderController.java)

package com.thoughtstopen.benchmark.reactive;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.reactive.function.client.WebClient;
import reactor.core.publisher.Mono;

import java.time.Duration;

@RestController
@RequestMapping("/api/v1/reactive/orders")
public class ReactiveOrderController {

    private static final Logger log = LoggerFactory.getLogger(ReactiveOrderController.class);
    private final WebClient webClient;

    public ReactiveOrderController(WebClient.Builder webClientBuilder) {
        this.webClient = webClientBuilder
                .baseUrl("https://api.internal.service")
                .build();
    }

    public record OrderResponse(String orderId, String status, long executionTimeMs) {}

    @GetMapping("/{orderId}")
    public Mono<OrderResponse> getOrderDetails(@PathVariable String orderId) {
        long startTime = System.currentTimeMillis();

        // Non-blocking reactive pipeline executed on Netty event loop
        return Mono.delay(Duration.ofMillis(50)) // Simulates 50ms non-blocking network I/O
                .map(tick -> {
                    log.info("Handled reactive order {} on thread: {}", orderId, Thread.currentThread().getName());
                    long totalTime = System.currentTimeMillis() - startTime;
                    return new OrderResponse(orderId, "COMPLETED", totalTime);
                });
    }
}

7. Decision Framework: Which Architecture Should You Choose in 2026?

Comprehensive Comparison Matrix

8. Troubleshooting Matrix & Production Readiness Checklist

Production Troubleshooting Matrix

Production Readiness Checklist

Before enabling spring.threads.virtual.enabled=true in production, ensure your service satisfies every item on this checklist:

• JDK Version Verified: Running on Java 21 LTS or Java 25 LTS (never use experimental early-access Loom builds).
• Carrier Pinning Audit: JVM booted in staging with -Djdk.tracePinnedThreads=full; verified zero java.lang.VirtualThread.park warnings inside monitors.
• Locking Modernized: Critical paths refactored from synchronized (lock) to ReentrantLock or java.util.concurrent primitives.
• ThreadLocal Audit Complete: Heavy object buffers (e.g., ThreadLocal<byte[]>, ThreadLocal<SimpleDateFormat>) eliminated or replaced with ScopedValue.
• Connection Pools Protected: HikariCP connection limits matched with a concurrency Semaphore to prevent pool starvation.
• Garbage Collector Optimized: Configured with modern Generational ZGC (-XX:+UseZGC -XX:+ZGenerational) or tuned G1GC (-XX:MaxGCPauseMillis=100) to prevent heap compaction pauses during continuation churn.
• Observability Updated: Metrics configured to track jvm.threads.virtual.live and JFR event jdk.VirtualThreadPinned.

Conclusion & Next Steps

The introduction of Virtual Threads represents the most significant architectural evolution in Java’s history. For the vast majority of enterprise applications, CRUD microservices, and financial transaction processors, Spring Boot 3 with Virtual Threads is the new standard architecture. It provides 96% of the performance of reactive programming while preserving the clean, readable, easily debugged imperative programming model that makes Java productive.

Reserve Spring WebFlux for specialized architectures where its unique strengths shine: streaming brokers handling hundreds of thousands of concurrent idle sockets, real-time push gateways, and end-to-end reactive pipelines requiring mathematical backpressure.

Recommended Companion Reading

Explore our deep dives into modern JVM internals, low-latency performance tuning, and distributed systems architecture:

• Virtual Threads Under the Hood: Carrier Threads and Scheduler Internals
• Java Garbage Collection Showdown: G1GC vs. Generational ZGC in Modern Java
• Under the Hood of the Java JIT Compiler: C1, C2, Tiered Compilation, and Escape Analysis
• Monoliths vs. Microservices: When to Use Which?
• Message Queues (Kafka, RabbitMQ) and Asynchronous Processing

Have you migrated your production microservices to Virtual Threads or encountered carrier thread pinning with legacy libraries? Reach out and share your benchmarks via our Contact Us page.

If this benchmark and architectural guide helped your team make an informed infrastructure decision, consider supporting our technical writing via the Buy Me a Coffee link on the About page! ☕
